Cisco WLC Deployment Models
1. Introduction
🔍 Have you ever wondered where the best location for your Wireless LAN Controller (WLC) might be? Should it go in the core layer, the distribution layer, or perhaps even in the data center? The answer depends on the deployment model you choose.
With a WLC, lightweight access points (APs) rely on it to manage wireless traffic through CAPWAP tunnels. This makes the WLC’s placement a critical decision for your network’s performance and efficiency.
In this guide, you’ll explore the four main WLC deployment models, their features, and how to select the one that best fits your network needs.
2. Centralized WLC Deployment

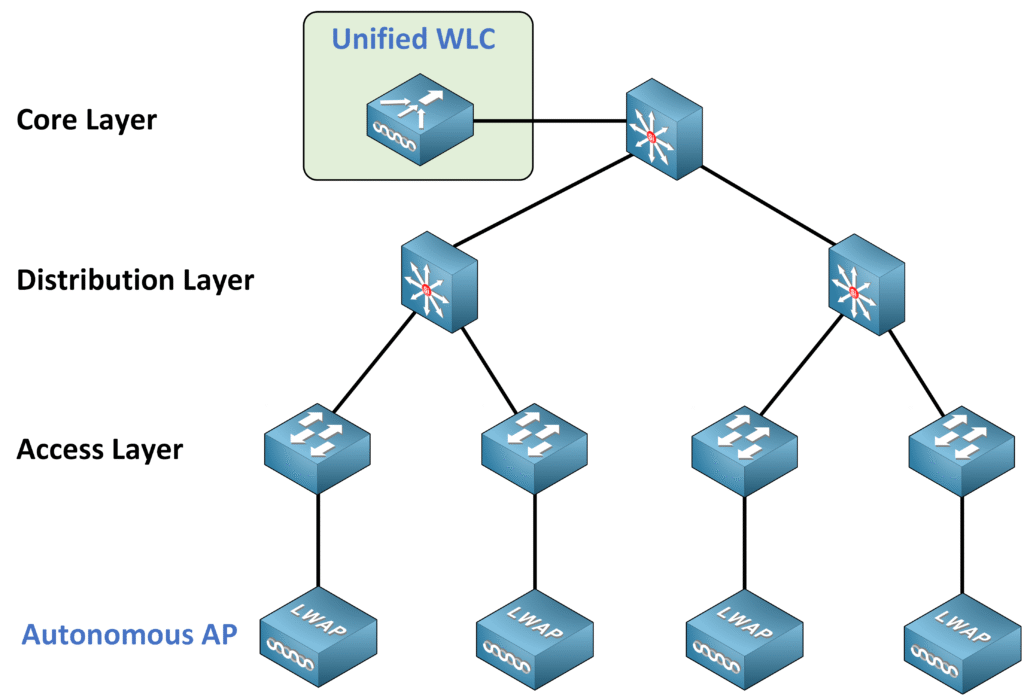

🔍 Also known as the Unified WLC Deployment, this approach places the WLC in a central location, often in the core layer or a data center as a dedicated hardware appliance.
✅ Key Features:
- Scalability: Supports up to 6,000 APs, making it an excellent choice for large enterprises.
- Simplified Management: All policies and configurations are centralized, ensuring consistent enforcement across the network.
Imagine a large corporate campus with thousands of APs. A centralized WLC allows the IT team to manage everything from one location, reducing complexity and ensuring uniform performance.
3. Cloud-Based WLC Deployment
🔍 What if you could host your WLC in the cloud? With a Cloud-Based WLC Deployment, the WLC runs as a virtual machine (VM) in a private or public cloud environment, such as a corporate data center.
✅ Key Features:
- Flexibility: Supports up to 3,000 APs, with the ability to scale by adding more WLCs as needed.
- Scalability for Hybrid Networks: Ideal for organizations adopting hybrid or cloud-first strategies.
💡 Tip: This is distinct from Cisco Meraki, which manages autonomous APs in the cloud. Here, we’re discussing lightweight APs managed by a WLC hosted in your private cloud.
This deployment is perfect for businesses that prioritize scalability while maintaining control over their wireless network.
4. Embedded WLC Deployment
🔍 An Embedded WLC Deployment integrates the WLC functionality directly into a network switch, often placed at the distribution or access layer. This minimizes the distance between the APs and the controller, reducing latency for local traffic.
✅ Key Features:
- Capacity: Supports up to 200 APs, making it suitable for branch offices or small campuses.
- Cost-Effective: Eliminates the need for a standalone WLC appliance.
📢 Example: Picture a university campus with multiple buildings. An embedded WLC in switches located in each building ensures low-latency communication between APs and their controller.
5. Cisco Mobility Express Deployment
🔍 For smaller networks, the Cisco Mobility Express model embeds WLC functionality into an access point (AP) itself, removing the need for dedicated WLC hardware.
✅ Key Features:
- Capacity: Supports up to 100 APs, with the option to add more controller-capable APs for expanded coverage.
- Ideal Use Case: Small businesses, remote sites, or temporary setups.
📢 Example: Imagine a small retail store with several APs to provide customer Wi-Fi. Using Cisco Mobility Express, the AP doubles as a controller providing wireless management.
6. Comparing the Four Main WLC Deployment Modes
Below is a quick reference table illustrating the capacity and typical use case for each deployment mode:
| Deployment Model | WLC Placement | Max APs | Best For |
|---|---|---|---|
| Centralized (Unified) | Core/data center (hardware appliance) | 6,000 | Large enterprises with centralized traffic |
| Cloud-Based | Private/public cloud (VM) | 3,000 | Hybrid/cloud-first organizations |
| Embedded | Integrated into a network switch | 200 | Branch offices, small campuses |
| Cisco Mobility Express (EWC) | Integrated into an AP | 100 | Small businesses, remote sites, temporary deployments |
7. Conclusion
📢 Choosing the right WLC deployment model comes down to understanding your network’s size, traffic patterns, and future scalability needs.
✅ Key Takeaways:
- Use a Centralized (Unified) deployment for large enterprises with thousands of APs and a need for centralized management.
- Opt for a Cloud-Based deployment if your organization values scalability and hybrid-cloud flexibility.
- Select an Embedded WLC for branch offices or smaller networks where cost-effectiveness and low latency are priorities.
- Choose Cisco Mobility Express when managing a small business, remote site, or temporary setup with minimal hardware.
By aligning your WLC deployment model with your network’s unique needs, you can ensure optimal performance and scalability.
