EtherChannel
EtherChannel is a networking technology that lets you combine multiple physical Ethernet links into a single logical link. This boosts bandwidth, ensures redundancy, and simplifies network management. Let’s see how networking functions with and without EtherChannel. 🧐
❌ Without EtherChannel
In a standard Ethernet network, adding multiple physical links between devices (such as switches or routers) does not always increase performance. Spanning Tree Protocol (STP) blocks one or more redundant links to prevent loops, leaving them unused. This forces traffic to flow over a single link, limiting bandwidth and redundancy. 🚦

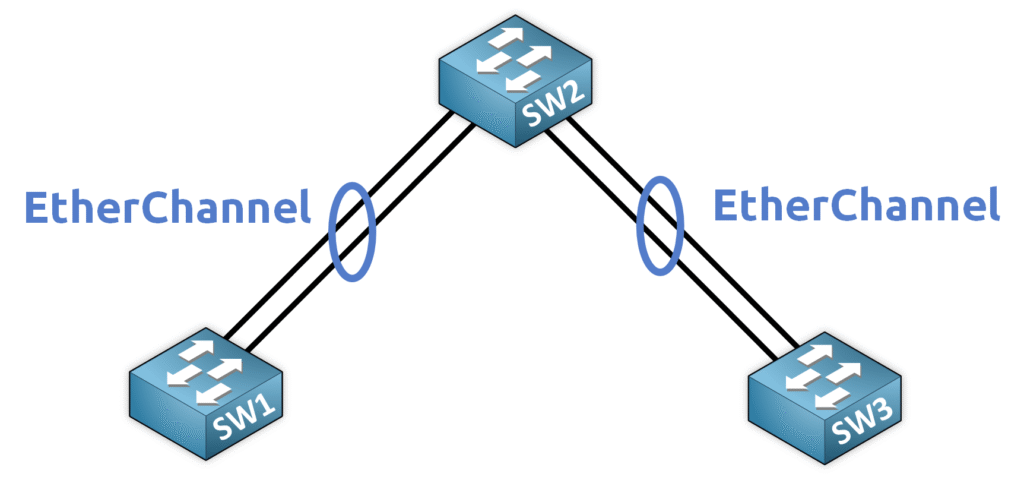

✅ With EtherChannel
EtherChannel bundles multiple physical links into a single logical link, allowing all links to remain active while avoiding STP restrictions. As a result:
- Better bandwidth utilization – Traffic is distributed across all active links.
- Enhanced redundancy – If one link fails, others take over without disruption.
- Simplified management – The bundled links function as a single interface.
2. EtherChannel Protocols
EtherChannel can be configured in three ways:
- Static EtherChannel – Manual setup, no negotiation.
- Port Aggregation Protocol (PAgP) – Cisco-proprietary dynamic bundling.
- Link Aggregation Control Protocol (LACP) – IEEE standard for multi-vendor environments.
Static EtherChannel
In Static (On) Mode, EtherChannel is manually configured with no protocol negotiation. Both ends must be explicitly set up to bundle the same interfaces.
⚠️ No verification of link consistency! Bundled interfaces must match in speed, duplex, and VLAN settings.
🔴 PAgP Protocol (Cisco-Only)
PAgP dynamically forms EtherChannel between Cisco devices by verifying compatibility before establishing the link.
Modes:
- Auto – Waits for the other device to initiate EtherChannel formation.
- Desirable – Actively negotiates EtherChannel with a PAgP-enabled neighbor.
⚠️ If both switches are set to Auto, no EtherChannel is formed!
🔵 LACP Protocol (Multi-Vendor)
LACP (IEEE 802.3ad) enables link aggregation across different vendors. It provides automatic negotiation and link health monitoring.
Modes:
- Active – Actively sends LACP packets to negotiate an EtherChannel.
- Passive – Waits for incoming LACP packets before forming EtherChannel.
Unlike PAgP, LACP works across multiple vendors, making it more flexible.
PAgP vs. LACP
| Feature | PAgP (Cisco-Proprietary) 🔵 | LACP (IEEE Standard) 🔴 |
|---|---|---|
| Compatibility | Cisco-only devices | Multi-vendor environments |
| Modes | Auto, Desirable | Passive, Active |
Summary
EtherChannel is a game-changer for network performance and reliability.
- Use PAgP if you’re in a Cisco-only environment.
- Use LACP for a multi-vendor setup.
- Use Static when you want full manual control over link aggregation.
Implementing EtherChannel correctly ensures better bandwidth, increased redundancy, and simplified management.
